Highlead GC20618-1

Flatbed Heavy Duty Walking Foot Sewing Machine

(Bottom feed, needle feed & walking foot top feed)

Highlead GC20618-1



The GC20618-1 is a Highlead single needle heavy duty compound feed walking foot lockstitch industrial sewing machine.

It features a heavy duty triple feeding action by way of: bottom feed, needle feed and walking foot top feed. These three different feeding components combine together to give a positive feed action which is well-matched with heavy or bulky material & fabrics.

It is fitted with the more advanced large vertically mounted hook assembly & drive transmission: which usually perform better than the standard & cheaper horizontal hook type set-up.

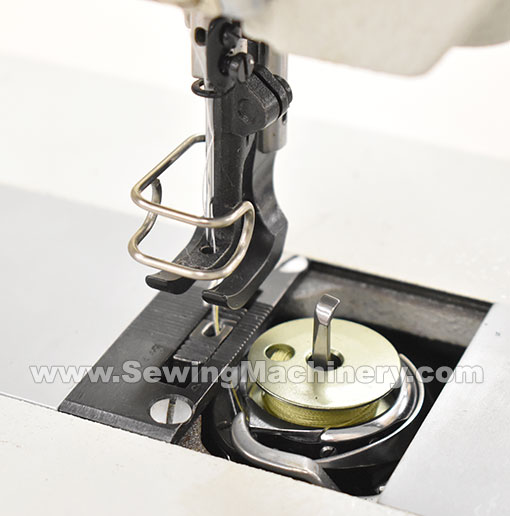

Large Vertical Hook & triple feeding Action

The machine is smooth running, durable, versatile and its robust construction includes: needle roller bearings for the arm & hook shaft etc., cog driven belt assemblies and more importantly an automatic oil lubrication system is fitted, which reduces wear & tear considerably.

A stitch length of up-to 9mm is available for functional and decorative stitching, plus the presser foot has a high clearance of up-to 16mm.

A safety clutch is fitted to help prevent damage to the hook, bevel gears and other important parts, should the machine become jammed or over-loaded.

The Highlead GC20618-1 is a well designed and robust general purpose needle feed, walking foot sewing machine for use on medium to heavy weight materials such as:

leather, vinyl, coated fabrics, canvas, webbing and upholstery materials etc.

It is suited to sewing, for example, car seats, general upholstery and leather articles, belts, canvas, tents, awnings, handbags, outdoor wear, straps & camping goods etc.

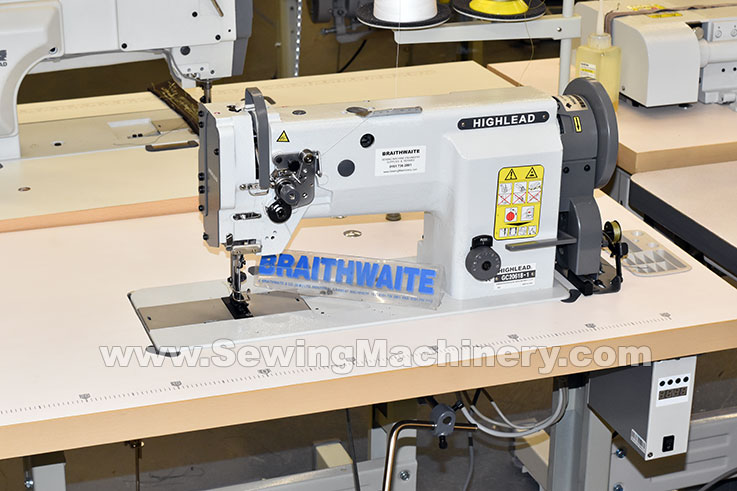

Highlead Gc20618 sewing machine



Features:
  • Quality robust construction
  • Automatic head lubrication
  • Automatic hook lubrication
  • Long stitch feature
  • Large vertical axis hook & base
  • Reverse stitch lever
  • Hook safety clutch
  • Quiet balanced head

Specification:
  • Max sewing speed: 2000rpm
  • Stitch length: 0-9mm
  • Needle bar stroke: 36mm
  • Take up stroke: 74.5mm
  • Presser foot lift by hand: 8mm
  • Presser foot lift by foot: 16mm
  • Hook: large Vertical type
  • Lubrication: Auto pump type



Also available Automatic Thread Trimmer models   Highlead GC20618-1D   Highlead GC20688-1D

Other walking foot machines Highlead GC0318  Highlead GC0618



GC20618-1DZA   GC198-2   GC0388   GC198   HLK-430   GC0618-1-SC   DY-850   GC20618
