Highlead GC20618-2

Twin Needle Flatbed Heavy Duty Compound Feed Walking foot Sewing Machine

(with Bottom feed, needle feed & walking foot top feed)

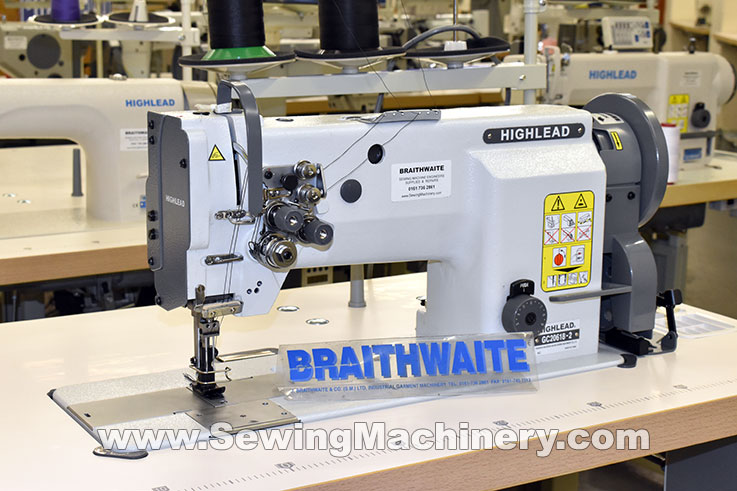

Highlead GC20618-2

*Photo shows the GC20618-1 single needle version



The GC20618-2 is the twin needle version of Highlead's heavy duty compound feed walking foot lockstitch industrial sewing machine.

It is designed using large vertical axis rotating hook & bases for thread loop catching and sliding bars for thread up taking.

The machine is smooth running, durable, versatile and its robust construction includes: needle roller bearings for the arm & hook shaft etc., cog driven belt assemblies and more importantly an auto oil lubrication system is fitted, which reduces wear & tear considerably.

It features a heavy duty triple feeding action by way of: bottom feed, needle feed and walking foot top feed and is fitted with two large vertically mounted hook & bases for use with medium to heavy weight materials.

A safety clutch is fitted to help prevent damage to the hooks, bevel gears and other important parts, should the sewing machine become jammed or over-loaded.

The Highlead GC20618-2 is a twin needle, needle feed, walking foot industrial sewing machine for use on medium to heavy weight materials and is suited to sewing for example:

Inflatable products, bouncy castles, car seats, general upholstery and leather articles, belts, canvas, tents, awnings, lorry curtain sidings, handbags, outdoor wear, camping goods etc.



Highlead GC20618-2

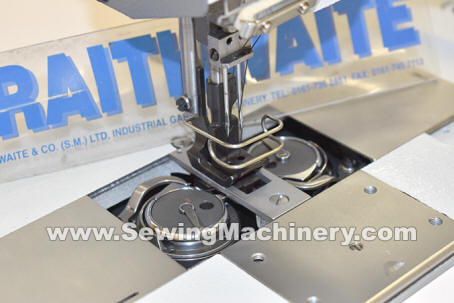

Highlead GC20618-2 walking foot

Needle gauge: 6.4mm standard
(optional: 3.2, 4.8, 8, 9.5 & 12.7mm)

 Available direct from our Manchester Warehouse

Features:

  • Automatic head lubrication

  • Triple feeding action

  • Quality robust construction

  • Automatic hook lubrication

  • Long stitch feature

  • Large vertical axis hook & bases

  • Reverse stitch lever

  • Hook safety clutch

  • Quiet balanced head

Specification:
  • Max sewing speed: 2000rpm
  • Stitch length: 0-9mm
  • Needle bar stroke: 36mm
  • Take up stroke: 74.5mm
  • Presser foot lift by hand: 8mm
  • Presser foot lift by foot: 16mm
  • Hook: 2x large Vertical type:
  • Lubrication: Auto pump type

Also available: Highlead GC20618-2D with automatic thread trimmer and operator aids



Highlead models:   GC2268-2B   GG0328-1   GC20618-1D   GC0388   HLK1006   GC0618   GC1998-MDZ   GC20618-1
