Highlead GC1988-MDZ
Single needle lockstitch sewing machine with automatic
thread trimmer &
Direct Drive Motor System
|
|
|

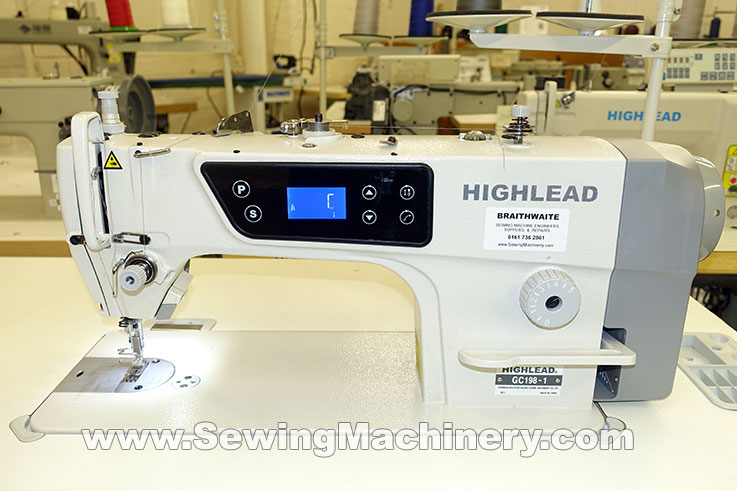

The Highlead GC1988-MDZ lockstitch
industrial sewing machine
with automatic under-bed thread trimmer features a direct drive
motor system. A powerful compact servo motor is fitted directly
inside the sewing machine head, which replaces the bulky motor normally
found under the table on conventional models.
The Direct Drive motor system offers
improvements including: quick start and stop, accurate positioning,
low noise, little vibration, smooth acceleration and greater
responsiveness for the operator.
Its equipped with a automatic thread trimmer
which is mounted under the needle plate for quick & accurate cutting of
thread at the end of a sewing cycle. This saves considerable time when
compared with manual cutting of threads using scissors etc.
The position of the needle is controlled
electronically and will
automatically put the needle in an UP or DOWN position at the end of a
sewing cycle: reducing the need to use the manual hand wheel.
|
|
Direct Drive Motor System |
|
|
The oiling system has been
completely redesigned and runs from a mini self contained and sealed
lubrication box which greatly reduces contamination and oil staining of
garments etc.
Energy efficiency comes as standard with
the servo motor only running when you are actually stitching. The
motor drive is transmitted directly inside the sewing machine head,
with-out a v-belt, reducing energy loss etc.
The Highlead GC1988-MDZ has many
programmable & time saving functions which include: Automatic start
& end back-tack, Stitch sewing program, Multi stitch count
program, Label sewing and Bar-tacking options etc. These
functions can be set & switched on or off from the included digital stitch
control panel. |
|
|
|
As well as the automatic thread trimmer and
electronic functions, it still has the standard features which users are
familiar with. e.g.: manual reverse lever, stitch adjusting dial, top
mounted bobbin winder, hand or knee operated foot lifter etc.
These standard features have also been complimented with the fitting of:
a knuckle operated reverse device which is positioned just above the
sewing foot area and allows operators to put the machine in reverse
with-out having to move their hand to the manual lever. An electric thread
wiper controls the thread end after cutting and helps reduce thread
bunching-up when you start sewing.
An optional automatic electric foot lifter device is available and fits on
the back of the sewing machine head (if fitted this replaces manual knee
lifter).
HIGHLEAD GC1988-MDZ
DIRECT DRIVE SEWING
MACHINE
|
|
 |
|
Specification:
-
- Max sewing speed: 5000spm
-
- Stitch length: 1-4mm
-
Needle bar stroke: 31.8nn
-
- Presser foot lift by hand: 6mm
-
- Presser foot lift by foot: 13mm
-
- Lubrication: Mini central box type
-
- Motor: Direct Drive, built into machine head.
|
 |
