Highlead GC1188

High speed single needle lockstitch machine, industrial flatbed

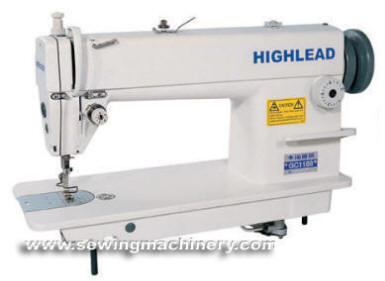

Highlead GC1188



The GC1188 is an industrial flatbed single needle lockstitch sewing machine manufactured by  Highlead.

It features a newly designed thread take-up mechanism which, when compared with other machines, allows this model to deal with a wider range of materials and applications.

The needle bar and feed mechanism have also been re-designed resulting in the machine operating smoothly with low noise and low vibration.

The positive feed motion combined with the new take-up mechanism allows the operator to switch between different materials and different jobs with little or no adjustment to the machine.

It can be set at up to 5000rpm and is fitted with an automatic pump driven lubrication system: feeding all important components, including the hook & base.

It is a general purpose industrial single needle lockstitch machine for use on light to medium weight fabrics & materials.

Many optional accessories are available for the GC1188, including:  zip feet, piping feet, gathering feet, hemmers, binders and guides etc.

The Highlead GC1188 with its new modern design and robust construction is one of the best general purpose flat machines available.

On show at our warehouse. Customers are welcome to come and try it.


Max sewing speed: 5000rpm
Stitch length: 0-5mm
Needle bar stroke: 33mm
Take up stroke: 60mm
Presser foot lift by hand: 6mm
Presser foot lift by foot: 13mm
Lubrication: Auto pump type
Quality Highlead construction

New Highlead models:   GC2268-2B   GC24688-2D   GG80018   GK600   HLK1006
